Spare Parts for E-Glider 2.0 (909334)
IMPORTANT - PLEASE READ BELOW!
If your E-Glider has a removable battery and battery compartment, this is the correct spare parts page.
Before purchasing please match the part on your glider to the pictures. Make sure your glider/spare parts are the same in these pictures. There are two versions, and if your part does not match the picture it won't work with your product. If you are not sure, click here for E-Glider 1.0 parts and check if your parts match these instead.
Replacing the propellers on the Cobra RC E-Glider.

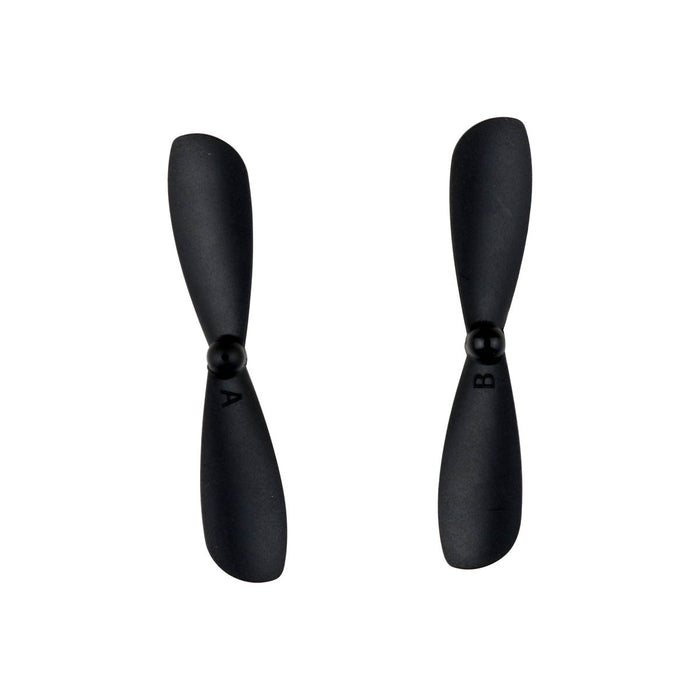

IMPORTANT: Note the markings on original propeller on the motor and ensure if it says “A” on prop that you replace it with an “A” prop, if it says “B” you replace it with a “B” prop.
The key for replacing the props is to ensure that you are pulling the propeller off the motor shaft, without pulling on the metal shaft itself or exerting force on the motor which is attached to the wing by a black plastic housing.
Step by Step:
1. The glider is OFF. Turn the glider upside down.
2. With your non dominant hand, hold the black plastic (cylindrical) housing with your forefinger and thumb. Adjust the tip of your thumb so that it is resting underneath and near the center of the propeller, your thumb is near the metal shaft of the motor (the propeller slides off and onto this shaft during the replacement process), and you are resting your thumb on the silver flat part of the motor and the edge of the black plastic housing. Rest your other 3 fingers gently on the underside (top of that wing).
In this way, you are gently holding back the motor and the plastic housing from moving as you simply pull the propeller straight off the shaft (towards the front of the glider).
3. Remove the old propeller and hold the components in the same fashion as you replace with a new propeller.
4. Spin the propeller to make sure it is clear of the wing and can spin freely.
